Full - automatic paint tinting machine , paint color making
equipment
Brief introduction
The dispensing systme is not only precisely controls the dispensing
of ingredients to provide excellent finished paint product
repeatability from batch to batch, but also can serve as a complete
inventory management system.
The system handles everything from formula storage. Since it
dispenses by piston pump, any desired batch size is precisely
dispensed as needed. With software modules included for raw
material (colorants) and finished product inventory. It is the
simple to operate and easy to maintain.
Features
1. Adjustable upward speed and dispensing speed of every colorant.Driver software use the same Flink.dat file as CPS/Hero/Lenteq,and
Formula.txt file as TECMEC,it’s compatible with worldwide major color software.
2. Ceramic valve structure, with good corrosion resistance and good
sealing,stable and reliable.The undispensed nozzle will dispense a little colorant in a
specified time to keep the colorant from drying,which can effectively prevent the nozzle from blocking.Automatic stirring at set time, prevent the colorant inside
canisters from subsidence.Piston pump ensure you precise measurement,free of calibration
life-long. Simple electrical system,easy to maintain. The rolling brush will clean seal ring of nozzle automatically.
Technical Data
| Dispensing | Sequential |
| Maximal Dispensing at one time | 50 ml |
| Flow Rate | 0.25L |
| Accuracy | 1/384 Y or 0.077 ml |
| Canister Capacity | (stainless cans)16 canisters in 2.3L |

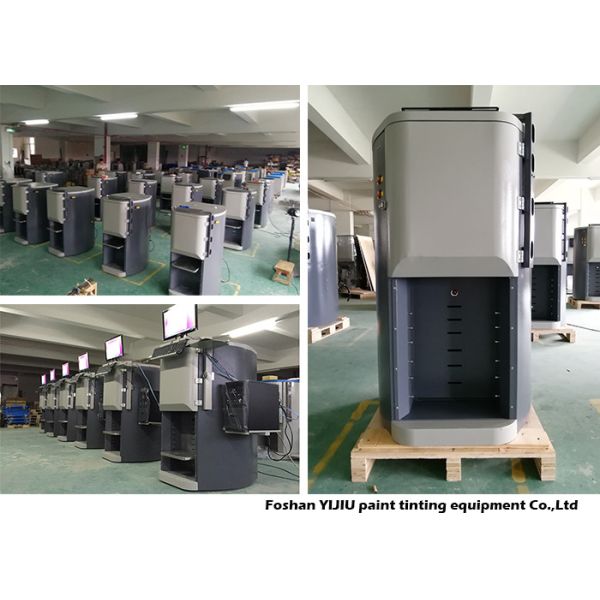

Sample show
Automatic dispenser machine FAQ
1. How many canisters?
12 , 14 , 16 , 24 caniters for option.
2. Can I use our own color software?
-YIJIU software can read Flink.dat file ( which is the formula file
created by CPS / Hero / Lenteq ) and dispense according to the data
of Flink.dat file.
- If your color software create other formula file rather than the
Flink.dat file, you can send to us for checking if we can make our
YIJIU software to read it.
-If you have no color software, you can manage the formula data in
YIJIU software directly.
3. Which the dispensing accuracy?
1/384Y or 0.077ml
4.What' the dispensing speed?
0.25L per min
5. Which is the maximum weight , volume and sizes of pails can be
placed into the dispenser machine table.
The maximum diameter of the bottom pail:340mm
The maximum height of the pail: 490mm
within above size of diameter and height will be OK.
6. What's the weight of the machine?
| Net Weight | 190.7KG |
| Gross Weight | 224KG |
6. What's the packing size for shipping cost?
| Machine Size | 805(L)*710(W)*1230(H) MM |
| Packing Size | 846(L)*758(W)*1398(H) MM |
Our Service
Warranty Service: Warranty period is 12 months. Within guarantee period,we can help
you judge the fault according to the failure phenomenon by E-mail.
and send replacement part to you except for the man-made factors.
Training:You can send personnel to our factory for free training on the
machine.
Inspection: You can send inspectors to our factory for inspection or we
self-inspect following the technical requirements mentioned in
contracts.
Testing of equipments: all our machines are tested before shipment. All machines are at
its optimal state when shipped.
